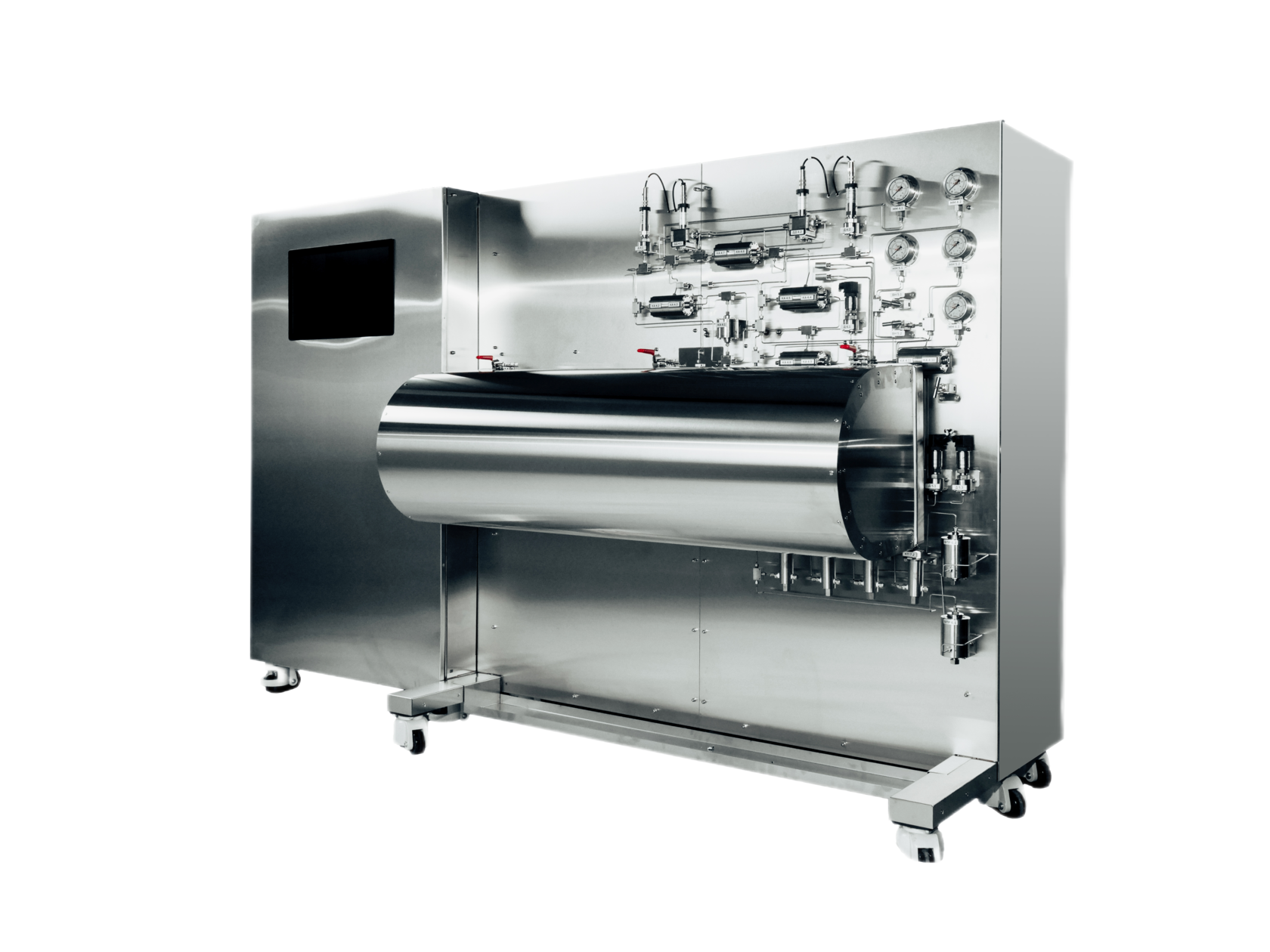

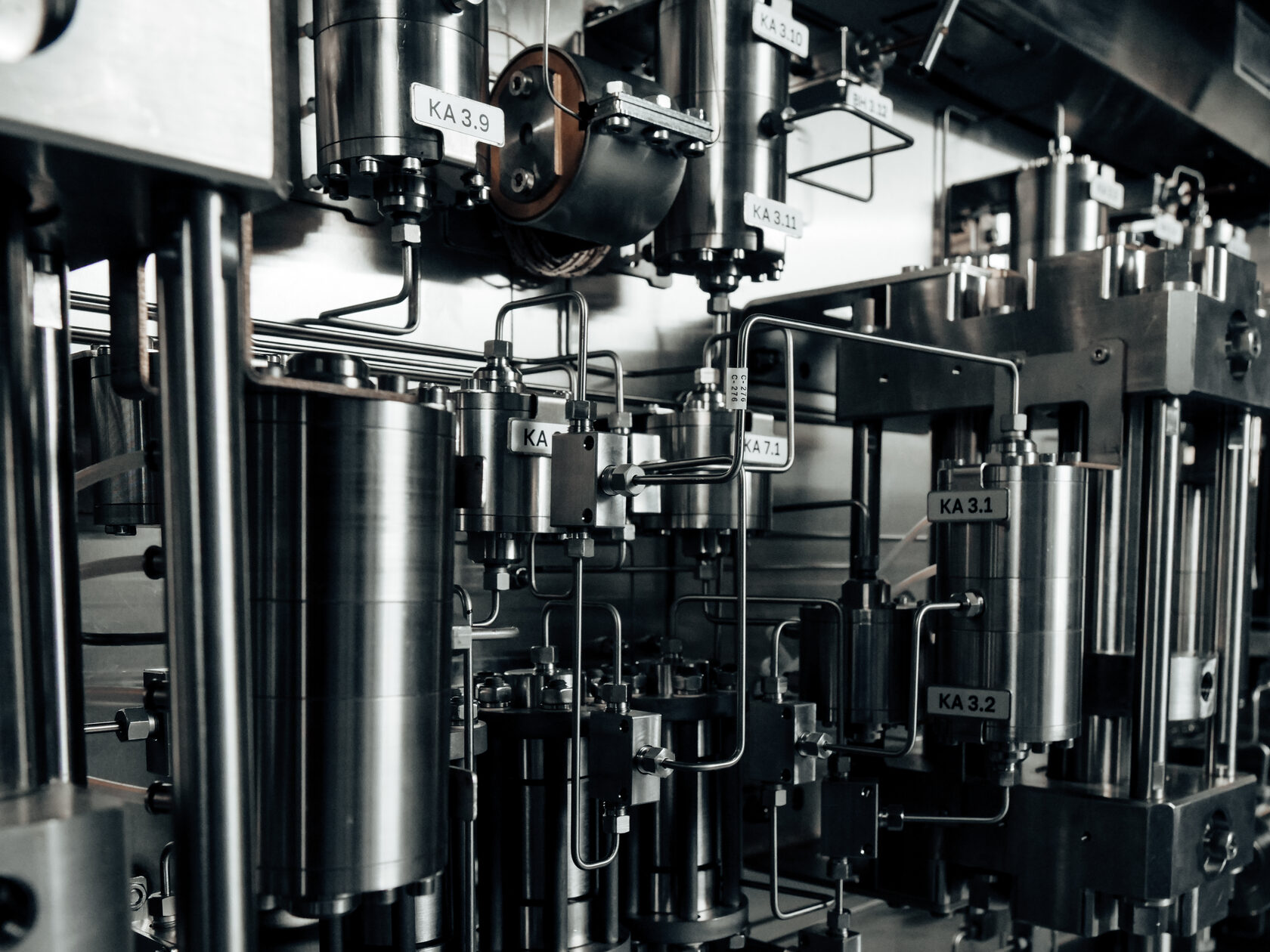

The SKIF OFP single-, two-, and three-phase filtration unit

The SKIF OFP single-, two-, and three-phase filtration unit is designed for determining the filtration, storage, and electrical properties of core samples under reservoir conditions using single-, two-, or three-phase steady-state and unsteady-state flow filtration.

The equipment is used in determining oil displacement coefficients by water/gas, in evaluating the effectiveness of enhanced oil recovery (EOR) methods using physical and chemical techniques, and in studying relative phase permeabilities under reservoir conditions.

Automated control processes for the unit;
Fluid filtration in both forward and reverse directions;
Data logging of filtration processes with graphical display of key parameters on a separate monitor;
Remote monitoring and control of the unit (via the Internet or Wi-Fi networks) using a mobile phone or tablet.

Core preparation for testing – pumping of water, oil, gas; saturation with water, oil, gas;
Working with recombined and reservoir fluids;
Measurement of fluid viscosity under reservoir conditions, capillary viscometer;
Establishment of residual water saturation, initial oil and gas saturations;
Electrometry, resistivity measurements, determination of specific electrical resistivity (SER) using 2- and 4-electrode methods;
Oil and gas displacement by water in accordance with OST 39-195-86, modeling of two heterogeneous permeability layers, polymer flooding;
Creation of an acid bath and modeling of well acid treatment;
Drilling mud cake formation, modeling of reservoir damage by drilling fluids, permeability restoration;
Determination of relative phase permeabilities in water-oil, water-gas, and oil-gas systems in accordance with OST 39-235-89;
Determination of absolute gas permeability coefficient in accordance with GOST 26450.2-85;
Determination of acoustic properties (propagation velocity of elastic longitudinal and transverse ultrasonic waves) during multiphase filtration (ultrasonic plungers with 3 filtration channels) in accordance with GOST 21153.7-75;

#rec855701123

#rec855701124

#rec855701125

#rec855701126

#rec855701127

#rec855701130

#rec855701128

#rec855701129

Maximum confining pressure; 100 MPa; Type of pump for generating confining pressure; Automatic; Maximum pore pressure; 70 MPa; Type of pumps for generating pore pressure; Automatic, dual-plunger; Reservoir pump operating modes;; ; Constant flow rate maintenance; ;Constant pressure maintenance; ;Maintaining a specified proportion during the filtration of two fluid phases through a core sample from 0 to 100%; Working flow rate range; From 0.001 to 50 ml/min; Accuracy of pressure maintenance, % of FSR; 0.5 ; Accuracy of flow rate maintenance, % of current value; 0.5 ; Pump cylinder volume; 200 ml; Working fluids;; ; Water with mineralization up to 300 g/L; ;Oil; ;Gas (determination of gas permeability);

Working temperature range; From +5 to +150 °C; Accuracy of temperature maintenance in the unit; ±1 °C; Accuracy of temperature maintenance in the core holder; ±0.1 °C; Forced air circulation function; Available; Material of inner surface; Stainless steel; Visual control; Inspection window, internal lighting; Heated elements; Core holder, inlet tubes, hydraulic parts of pumps, separation vessels, separator, capillary viscometer;

Type; Hassler; Sample diameter; 30 mm, 25.4 mm (1 inch), 38.1 mm (1.5 inches), 50 mm (2 inches), 100 mm (full-diameter); Maximum sample length; from 150 to 330 mm; Maximum working confining pressure; 100 MPa; Maximum working pore pressure; 70 MPa; Maximum working temperature; 150 °C; Resistivity monitoring of saturation; Using 2- and 4-electrode configurations; Presence of electrical insulation; Available; Material of fluid-contacting parts; Stainless steel; Spatial orientation; Horizontal, vertical, at an angle to the horizontal;

Type; Digital resistivity meter, RLC meter; Frequency; 1000 Hz; Error; 0.05 %; Measurement scheme; Four-electrode, two-electrode;

Measurement method; Material balance; Measurement device; Separator; Number of phases (interfaces); Two-phase (searching for one meniscus), three-phase (searching for two menisci simultaneously); Type; Visual / ultrasonic / visual-ultrasonic; Volume of separator-meter; 200 ml; Measurement error; ±0.1 ml; Material of parts in contact with fluids; Stainless steel, sapphire; Working pressure; Reservoir, up to 70 MPa; Working temperature; Reservoir, from +5 to +150 °C;

Type; Back pressure regulator with buffer tank, pump; Maximum working pressure; 70 MPa; Control; Automatic pressure maintenance; Material of fluid-contacting parts; Stainless steel, fluoropolymer, PEEK; Working fluid; Mineral oil / distilled water;

Working fluids; Formation water, aqueous salt solutions up to 300 g/L, aqueous solutions of HCl acids up to 12%, HF up to 5%; ;Formation oils, isoviscous oil models, hydraulic oil, gels and gel-forming solutions on a water or oil basis; ;Gases of organic (formation, methane, etc.) and inorganic (nitrogen, carbon dioxide, etc.) origin; Type; with separating piston; Volume; from 100 to 2000 ml; Maximum working pressure; 70 MPa; Maximum working temperature; +150 °C; Mounting method; vertical; Working fluid; Oil, water, kerosene; Presence of shut-off valves; Available; Fittings for filling/emptying; Available;

Type; Differential sensor; Measurement range; From 0 to 250 kPa; ;From 0 to 1600; Measurement error; ± 0.075 %;
