Automated core sample cleaning system for the removal of formation fluids
SKIF-SOK-CO2/TOLUENE

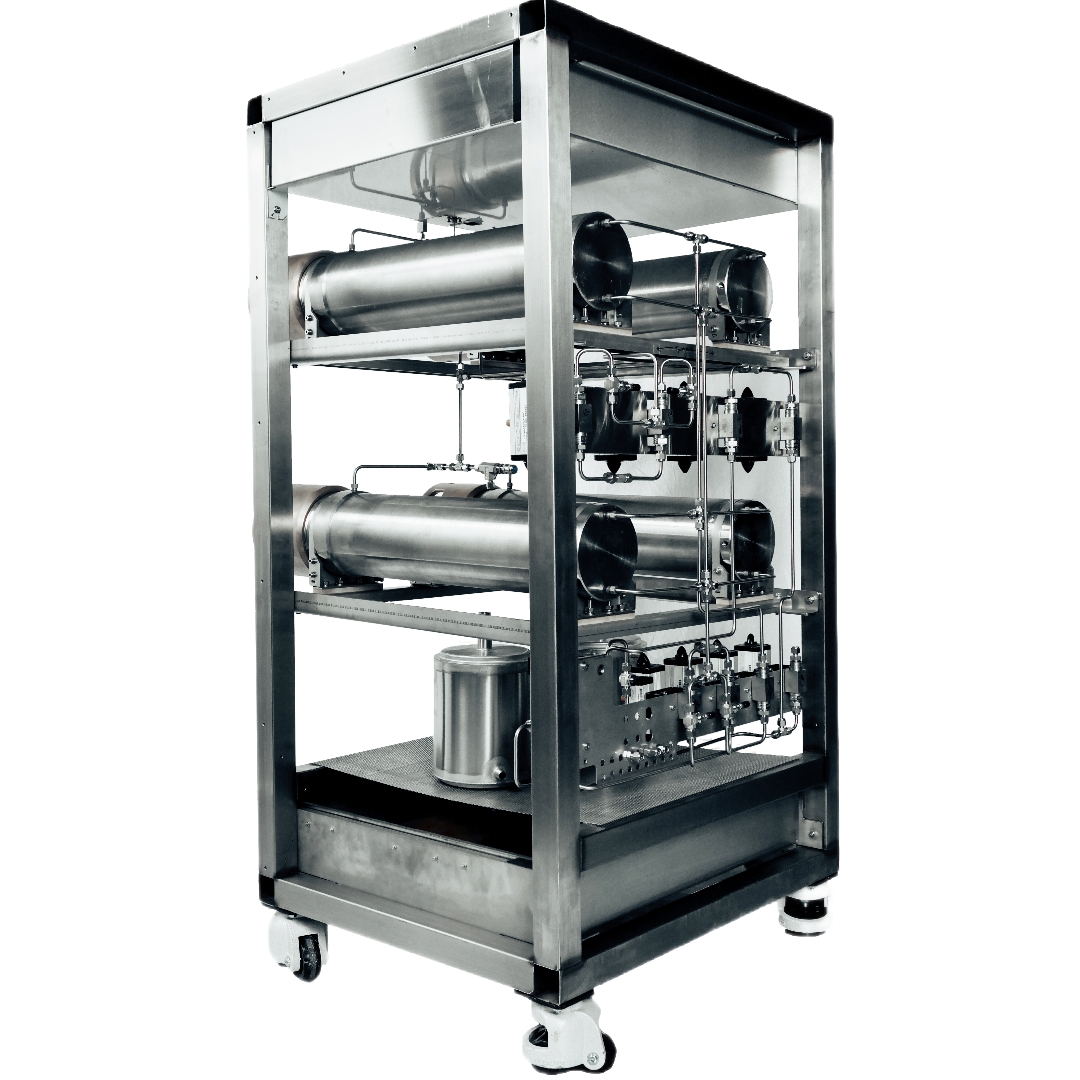

The SKIF-SOK-CO2/TOLUENE automated core cleaning system for removing formation fluids is designed to clean the pore space of core samples up to 110 mm in diameter from formation fluids and technological liquids using aggressive extraction methods.
The SKIF-SOK-CO2/TOLUENE automated core cleaning system for removing formation fluids is designed to clean the pore space of core samples with diameters from 30 to 110 mm from formation fluids and technological liquids using pressurized toluene with dissolved carbon dioxide in an automated mode controlled by specialized software. When the pressure in the saturation chamber decreases, the carbon dioxide is released from the toluene and, expanding, displaces the contaminated solvent from the pore space of the samples. Extraction efficiency is achieved by repeatedly cycling through “saturation-degassing” until the solvent stops changing color. Extraction can be performed for both full-size core fragments and core samples of various sizes and shapes.
The supply voltage is 380±38 V, the AC frequency is 50±1 Hz.
Maximum power consumption is not more than 10 kW.
Climatic version of UHL 4.2 GOST 15150-69.
Degree of protection IP42 GOST 14254-2015
The product is operated at ambient temperatures from 10 to 35 °C, relative humidity of no more than 80% and atmospheric pressure from 84 to 106.7 kPa (from 630 to 800 mm Hg).
Maximum power consumption is not more than 10 kW.
Climatic version of UHL 4.2 GOST 15150-69.
Degree of protection IP42 GOST 14254-2015
The product is operated at ambient temperatures from 10 to 35 °C, relative humidity of no more than 80% and atmospheric pressure from 84 to 106.7 kPa (from 630 to 800 mm Hg).
