Equipment for measuring proppant pack conductivity

SKIF-API RP 61

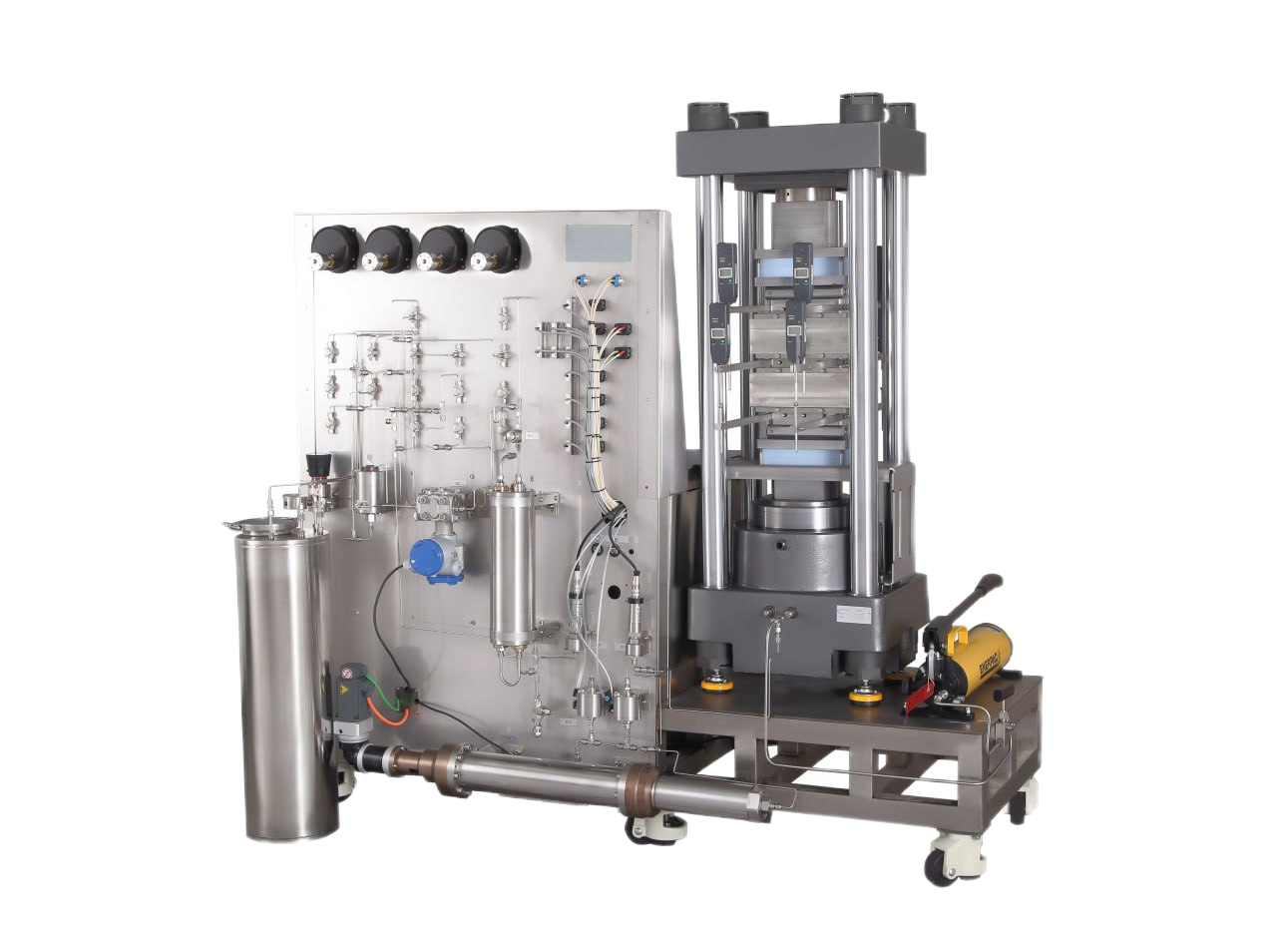

The SKIF-API RP 61 proppant pack conductivity measurement unit is designed for studying the operational characteristics of a proppant pack under thermobaric conditions corresponding to reservoir conditions or as defined by regulatory documentation.

The equipment allows for evaluating the long-term and residual conductivity of packs of all types of propping agents (ceramic proppants and quartz sands), performing continuous measurements during the experiment of the pack’s compression forces, its height, and fluid permeability at pore pressures up to 10 MPa (1450 psi) and compression pressures up to 138 MPa (20,000 psi).

#rec855700995

#rec855701000

#rec855700999

#rec855700998

#rec855701001

#rec855700993

#rec855700994

#rec855700996

#rec855700997

Standard; ISO 13503-5; Material;Stainless steel; Pack Thickness Measurement; Mitutoyo ID-U1025E sensors; Pack Thickness Measurement Accuracy; 25 µm (micrometers); Proppant Leveling Device; Included;

Maximum Operating Pressure; 10 MPa; Maximum Operating Temperature; +150 °C; Volume; 300 mL;

Type;Four-column; Minimum Support Diameter; 63.5 mm; Maximum Axial Compression Force; 100 tons; Control; Automatic; Force Maintenance Accuracy; 0.5%;

Type; Dual-plunger; Maximum Pressure; 10 MPa; Minimum Flow Rate; 0.001 mL/min; Maximum Flow Rate; 100 mL/min; Cylinder Volume; 100 mL; Pressure Maintenance Accuracy; 0.5% FS (Full Scale); Flow Rate Maintenance Accuracy (from current value); 0.5%; Working Fluids; Oil; Operating Modes; ;Constant Flow Rate Mode; ;Constant Pressure Mode; ;Programmable Cycles with Smooth Parameter Changes (pressure/flow rate changes by a specified amount over a defined time);

Type; Dual-plunger; Maximum Pressure; 80 MPa; Minimum Flow Rate; 0.001 mL/min; Maximum Flow Rate; 100 mL/min; Cylinder Volume; 100 mL; Pressure Maintenance Accuracy; 0.5% FS (Full Scale); Flow Rate Maintenance Accuracy (from current value); 0.5%; Working Fluids; Oil; Operating Modes; ;Constant Flow Rate Mode; ;Constant Pressure Mode; ;Programmable Cycles with Smooth Parameter Changes (pressure/flow rate changes by a specified amount over a defined time); Fluid Preheating; Yes; Cell Heating; Yes; Maximum Temperature; 150 °C; Temperature Maintenance Accuracy; ±0.5 °C; Heated Elements; Conductivity cell, saturator, supply tubing;

Measurement Range; ;0 to 10 kPa (0 to 1.45 psi); ;0 to 100 kPa (0 to 14.5 psi); Accuracy; ±0.045%;

Upper Measurement Limit; 80 MPa; Accuracy; ±0.25%;

Lower Limit; 2.07 kPa; Upper Limit; 10 MPa;

Quantity; 2 units; Type; Separator piston type; Volume; 2000 mL; Maximum Operating Pressure; 40 MPa; Maximum Operating Temperature; +150 °C; Fluid-Contacting Parts Material; Stainless steel; Solution Mixing; No; Quantity; 2 units;
